BC-312 and BC-342 Radio Receivers Name Plate Page

Open small images in your viewer to see full size (approximate 3.75 inches wide, at 150dpi resolution).

Eventually it will be great if the table would have all the units. According to the latest documents I have (TM 11-850 manual supplement of 8 April 1954) the following units were produced:

BC-312, -A, -C, -D, -E, -F, -G, -J, -L, -M, -N, -HX, -NX
BC-342, -A, -D, -E, -F, -J, -L, -M, -N
BC-314, -C, -D, -E, -F, -G
BC-344, -D

The BC-342 was modified for use in OA-65/MRC-2 and OA-65A/MRC-2 and ended its life as an R-336.

I have found copies of the some of the original qualification testing on the prototype BC-312 in April 1936. That probably means the design started at least a year before that. According to Sibley's "Tube Lore," the tubes used were registered by RCA in June of 1935.

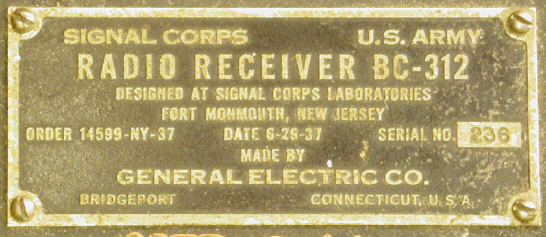

BC-312	236	14598-NY-37	GE

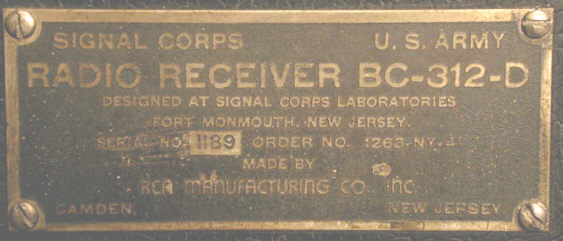

BC-312-D	1189	1263-NY-41	RCA

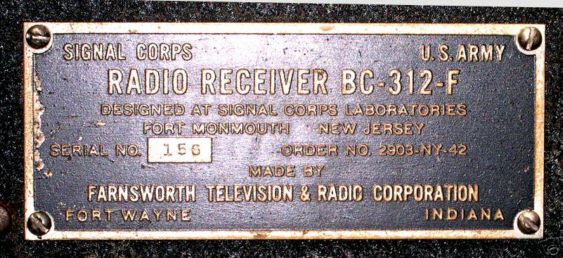

BC-312-F	156	2903-NY-42	Farnsworth (Ebay)

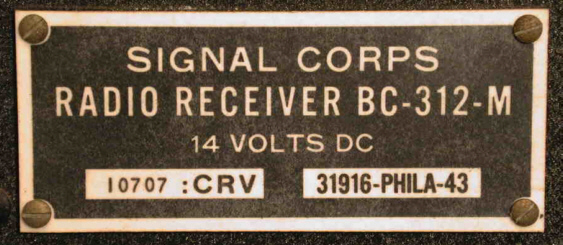

BC-312-M	10707	31916-PHILA-43	CRV (RCA for Navy)

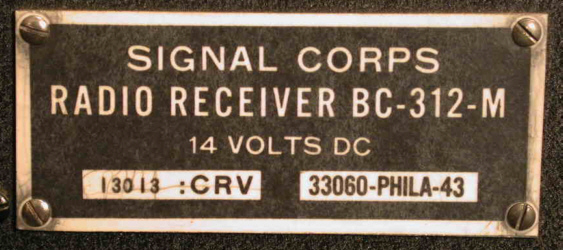

BC-312-M	13013	33060-PHILA-43	CRV (RCA for Navy)
BC-342-D	1413	1263-NY-41	RCA

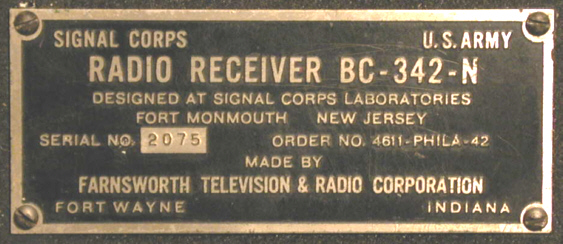

BC-342-N	2075	4611-PHILA-42	Farnsworth
BC-342-N	178	14364-PHILA-43	Farnsworth
BC-342-N	2037	16133-PHILA-43	Farnsworth (rebuilt as OA-65-A by B&W)

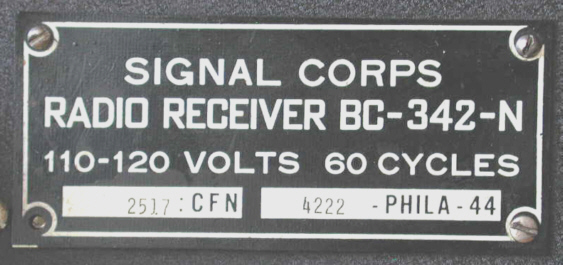

BC-342-N	2517	4222-PHILA-44	CFN (Farnsworth for Navy)

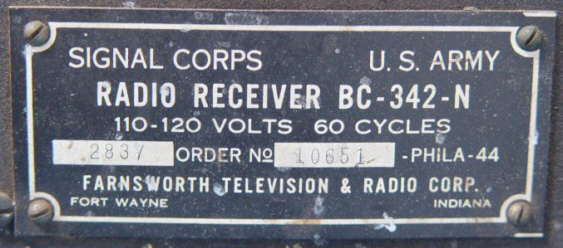

BC-342-N	2837	10651-PHILA-44	Farnsworth (Ebay)

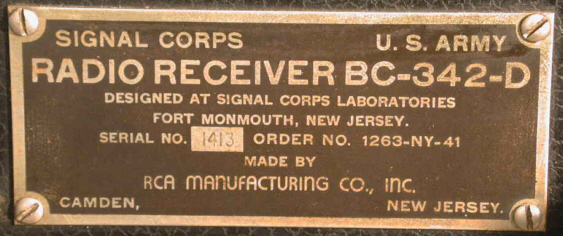

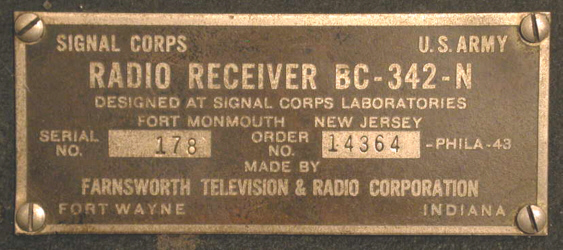

These first two are curtesy of http://oak.cats.ohiou.edu/~postr/bapix/ (used with permission)

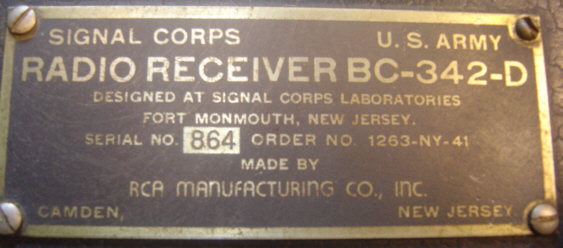

This next image is from Larry, a usenet reader:

Last modified: August 15, 2006.
